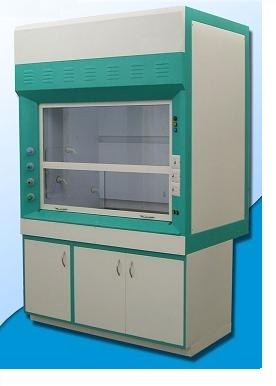

Fume Hood

Fume Hood
Fume Hood
Product Code : 687
Brand Name : Ultrafab
Product Description


We are an unparalleled name who offers superior quality Fume Hood that is designed for applications where hazardous or noxious vapors, gases or dusts are released. This fume hood is provided with support base that has the provision for air vent connection to evacuate trapped chemical vapor inside. The fume hood is aerodynamically designed keeping in mind maximum efficient airflow to the suction. Our Fume Hood is widely used in biotechnology, tissue culture, bio chemistry, botany, food Processing, healthcare industry, etc.


o Auto Bypass type fume hood
o Best quality CRCA sheets of 18/20 gauge for better protection from acid fumes
o Apparatus Storage (option: Chemical storage) base cabinet
o 4 nos. service valve with polyurethane plumbing
o Splash & spillage proof jet black granite worktop (option: joint-less ceramic worktop)
o Vertical rising 5.5mm toughened glass sash suspended with counter balance load for
easy up and down movement
o Optional air flow monitor
o Meets ASHRAE 110 and EN 14175 standards
ST1200-ABP ST1500-ABP ST1800-ABP
(W x D x H) mm
1200x100x2400 1500x1000x2400 1800x1000x2400
Air Suction Capacity 1800CFM 2000 CFM 2200CFM
Construction (exterior) Powder coated durable 1.5mm heavy duty CRCA sheet
Construction (interior)
Chemical and heat resistant, fire retardant, easy cleanable
panels, 6mm thick wall. ASTM flame spread index <25
Wet & Dry Service Left hand side 4 lines for water, nitrogen, vacuum and CA
Lighting 40W x 2nos. fluorescent light (approx. 400 lux)
Electrical Utilities 4 nos. (2L+2R) electrical socket with MCB
Price (`) 2,60,000 2,80,000 3,00,000
