Product Code : 07
Brand Name : Optizen POP
Product Description

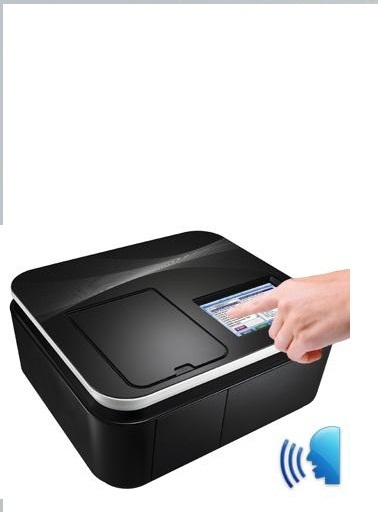

OPTIZEN POP

Our dexterous professionals help us to import trade and supply a wide variety of Optizen POP/Scanning Beam that is highly cherished by our clients for its perfect functioning, accurate reading and durability. This is a single beam photometric system using both, tungsten-halogen and power saving deuterium lamps. Made using optimum grade raw materials in compliance with the market prevalent norms, this equipment is sourced from reliable vendors of the market. This Optizen POP/Scanning Beam is carefully tested on defined parameters by our vendors to ensure its durability, reliability and efficiency.

Features:

  • Single beam optics with auto scanning facility in entire wavelength range
  • Emotional design – unique, defined crystal look
  • Large 7 inch touch-screen color LCD display with voice guide
  • Quartz coated high precision optical components for enhanced life
  • 2 years or 2500 hours of Deuterium lamp guaranteed life
  • ABM (Auto Blank Measuring) technology makes the instrument function like a double beam
  • Automatic 8- position rotary cell holder with temperature sensor
  • Software based on Windows CE system
  • 4 USB ports, 3 RS232 ports with Network facility
  • No exclusive printer – any USB printer that supports PCL mode are compatible
  • Up to 8GB (std.: 2GB) of storage capacity for data

Accessories:

  • PC based software OptizenView 4.1
  • Life Science Software OptizenView BIO
  • Water thermostatted cell holder
  • Peltier thermostatted cell holder
  • Micro volume cell holder
  • Long path cell holder
  • Film cell holder
  • Sipper

Specifications:

  • Optical System Single beam optics
  • Monochromator
  • Modified Czerny-Turner type with 1200 lines/mm blazed Grating
  • Spectral Bandwidth < 1.8 nm
  • Wavelength Range: 190 ~ 1100 nm
  • Wavelength Accuracy < ± 0.5 nm (at D2 peak 656.1 & 486.0 nm)
  • Wavelength Reproducibility < ± 0.1 nm
  • Scanning Speed Max. 4,000 nm/min
  • Photometric Range -0.5 ~ 3.0 Abs
  • Photometric Accuracy ±0.005 Abs (at 1.0 Abs)
  • Photometric Reproducibility ±0.003 Abs (at 1.0 Abs)
  • Stray Light < 0.05 %T (220 nm, 340 nm)
  • Baseline Flatness < ± 0.002 Abs. (200 – 1000 nm)
  • Baseline Stability < ± 0.001 Abs./hr. (550 nm)
  • Noise Level < 0.001 Abs
  • Light Source D2 Lamp & Tungsten-Halogen Lamp
  • Lamp Change Wavelength 340 – 410 nm (default: 370nm)
  • Dimensions (W x D x H) mm: 433 x 381 x 180
  • Price (Rs.): 2,80,000
