Programmable Microwave Catalytic/Synthetic/Extract

Programmable Microwave Catalytic/Synthetic/Extract
Programmable Microwave Catalytic/Synthetic/Extract
Product Code : 04
Product Description

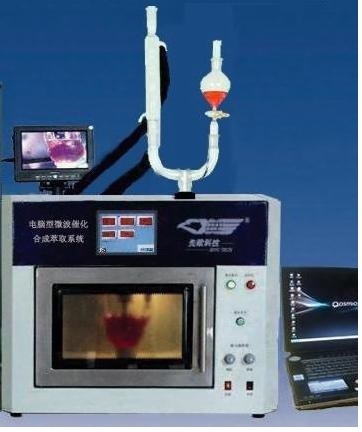

PROGRAMMABLE MICROWAVE CATALYTIC/SYNTHETIC/EXTRACTION SYSTEM

Backed with a team of experienced professionals, we provide a wide range of Programmable Microwave Catalytic/Synthetic/Extract. This equipment accelerates the chemical reaction or the physical process and enhances the reaction rate by hundreds or thousands times, so lots of low velocity chemical reaction and physical process can be successful recognized. This instrument is suitable for organic synthetic chemistry, inorganic chemical synthesis, pharmaceutical chemistry, food science, molecular biology, analytical chemistry, petrochemical industry, metallurgy, environmental pollution treatment fields, etc. Our technologically advanced Programmable Microwave Catalytic/Synthetic/Extract is available in varied technical specifications to meet the specific requirements of our clients.

Features:

  • Antimagnetic stainless steel interior and exterior
  • Non-pulse continuous microwave emission with facility of self regulation
  • Unique Automatic Temperature Frequency Conversion Control technology to control the temperature very precisely (precision: ±1 0C)
  • Ultra precision remote infra-red temperature sensor to detect and control reaction process (Temperature range: R.T ~ 500 0C)
  • Large 10â€Â ultra-thin, high definition, multifunction color LCD display
  • Large memory camera to record entire reaction process
  • Touch-screen control panel to program parameters. User can input 5 kinds of reaction program by setting reaction parameters
  • Reaction vessel match the unique designed cold water apparatus to control high temperature caused by microwave emission
  • Option: Magnetic stirrer, Mechanical stirrer, PC software

Specifications:



  • Model: XO-50A, XO-100A, XO-200A, XO-300A, XO-400A, XO-500A, XO-800A, XO-1000A
  • Microwave Power: 700W, 1000W, 1200W, 1800W, 3000W, 5000W, 8000W, 10000W
  • Reaction Volume: 20~500ml, 100~800ml, 200~1500ml, 500~3000ml, 1L~4L, 2L~10L, 4L~15L, 5L~20L
  • Price (Rs.) 10,80,000, 12,42,000, 17,82,000, 23,40,000, Enquire, Enquire, Enquire, Enquire

Ultrasonic Microwave Reaction System

Features:



  • Combination of ultrasonic power (25 KHz) and microwave power (2450MHz)
  • No need to put ultrasonic generator in sample, ultrasonic energy is transferred by air, directly into the sample
  • Various kinds of ultrasonic probes, Ø2 ~ Ø35 mm as per reactor size
  • High precision gold plating PT100 sensor to detect and control temperature (Temperature control: R.T ~ 300 0C, Temp. precision: ≤±0.5 0C)
  • Adjustable timer for reaction (0 ~ 9999sec.)
  • Large 10â€Â ultra-thin, high definition, multifunction color LCD display
  • Large memory camera to record entire reaction process
  • Touch-screen control panel to program parameters. User can input 5 kinds of reaction program by setting reaction parameters
  • Optional matching vacuum pump to remove moisture

Specifications:



  • Model: XO-SM50, XO-SM100, XO-SM200, XO-SM300, XO-SM400, XO-SM500
  • Ultrasonic Power 900W, 1000W, 1200W, 1800W, 2500W, 3500W
  • Sonicator Probe Diameter Ø6mm, Ø10mm, Ø20mm, Ø30mm, Ø40mm, Ø30mm x 2
  • Microwave Power: 700W, 1000W, 1200W, 1800W, 3000W, 5000W
  • Reaction Volume: 0.5~500ml, 50~800ml, 100~1500ml, 300~3000ml, 400~4000ml, 1L~12L
  • Price: 15,30,000
